型号Model
|
CMC Crawlers S32
|
最大工作高度Max. working height
|
32 m
|
最大平台高度Max. lifting height
|
30 m
|
最大水平延伸Max. working outreach
|
16 m
|
平台篮尺寸Basket size
|
1,7x0,7x1,1 m
|
最大承载重量Basket max. load
|
200 kg
|
底盘旋转角度Turret rotation
|
± 360° (720°)
|
平台旋转角度Basket rotation
|
± 90°
|
最机重量Weight
|
6560 kg
|
凭借产品的品质与价值,CMC迅速成为世界上领先的车载式高空作业与自驱动蜘蛛车的专业制造商。
今天CMC引领全球蜘蛛车科技,并将产品销售到了超过30个国家,结合巧妙的新思路,做最简单,易操作的高空作业设备,是我们成功的关键。这种成功的方法也给客户带来的最好的价值和更高的投资回报率。
在技术方面,可靠性和效率是我们的追求,产品从设计阶段,没有什么是可以忽略的。我们能够预见和解决所有的问题,包括设备在工作期间或者工作之后。操作人员只需要系好安全带。
设计的高标准,渴望更好的安全性和无限的追求卓越,我们的成功进一步通过不断投资和集成新的先进技术,不断创新,包括经验丰富的来自世界各地的工程师,才华横溢的工程师、装配技术人员和权威的测试专家。
每个平台制造与高度执行组件,最佳耐久性的升力,CMC机器有14步骤检测过程,要求苛刻,以确定他们的性能是最好的。CMC做专业的蜘蛛车与车载高空升降平台。

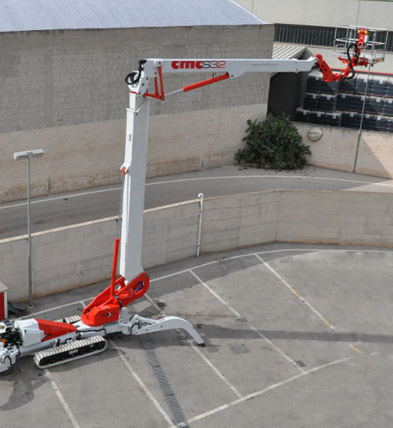

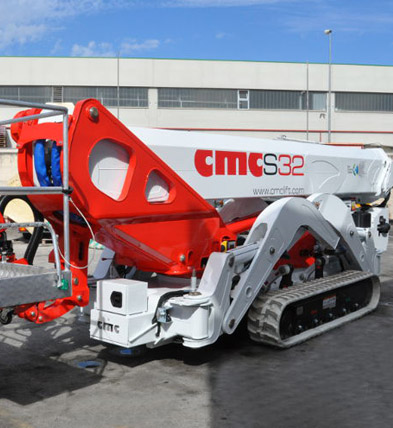

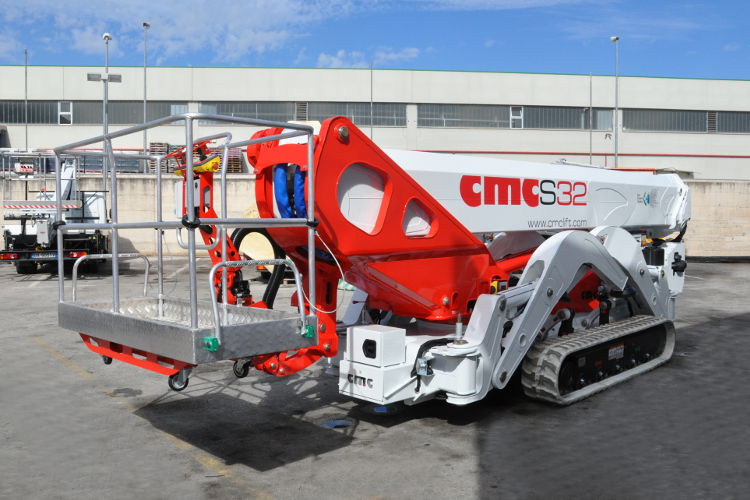

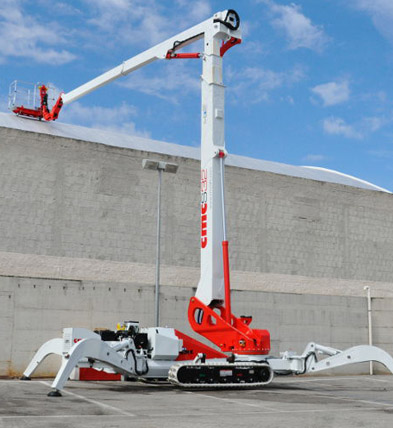

Our newest and most technologically advanced
aerial lift. The S32 is the NEW STANDARD in this size class, offering
features that no one else in the world offers. This is the only articulating
and telescopic lift in this size, capable of articulating and telescoping at
the same time.
Equipped with one articulating and two
telescopic lower boom sections, one articulating and one telescopic boom upper
boom sections, movable jib and 180° rotate able quick connect 1.70m basket with
up to 200kg basket load. The S32 offers greater maneuverability and “up (17.5m)
and over (16m) capability”. Additionally this lift is also capable of
reaching negative 3.5m below grade.

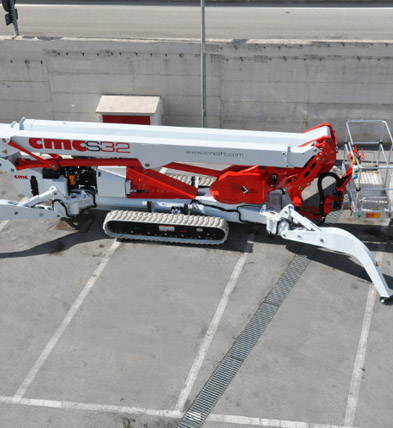

Compact travel dimensions of 1,99m x1,54m x 7,5m
(HxWxL) and height adjustable tracks, allow egress in the most difficult of
situations, including travel on steeper slopes, by lowering one track assembly
and raising the other.
Hybrid power source - quiet diesel engine/380v
electric hydraulic power pack is standard.
S32 is one of the best performers and value
available in the world today.
