Model |
CMC TB 20 |
|

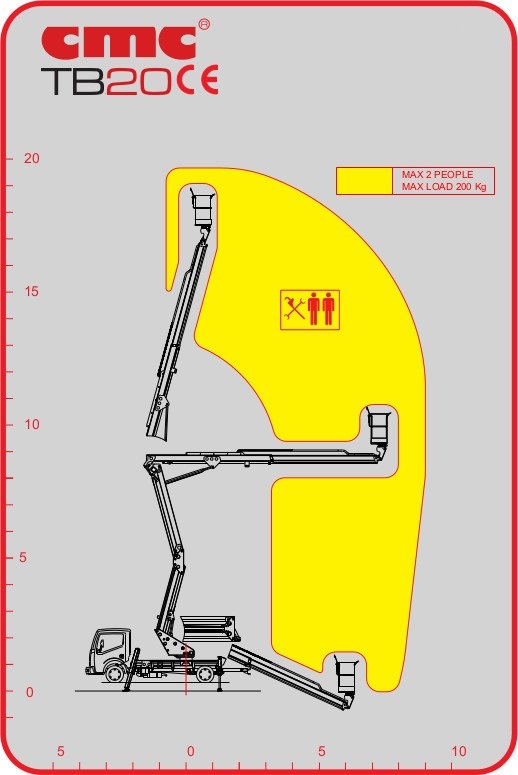

Max. working height |
19,7 m |
|
Max. lifting height |
17,7 m |
|
Max. working outreach |
8,6 m |
|
Basket size |
1,4x0,6x1,1 m |
|
Basket max. load |
200 kg |
|
Turret rotation |
± 360° (720°) |
|
Basket rotation |
± 90° |
|
Total weight |
3,5 t |

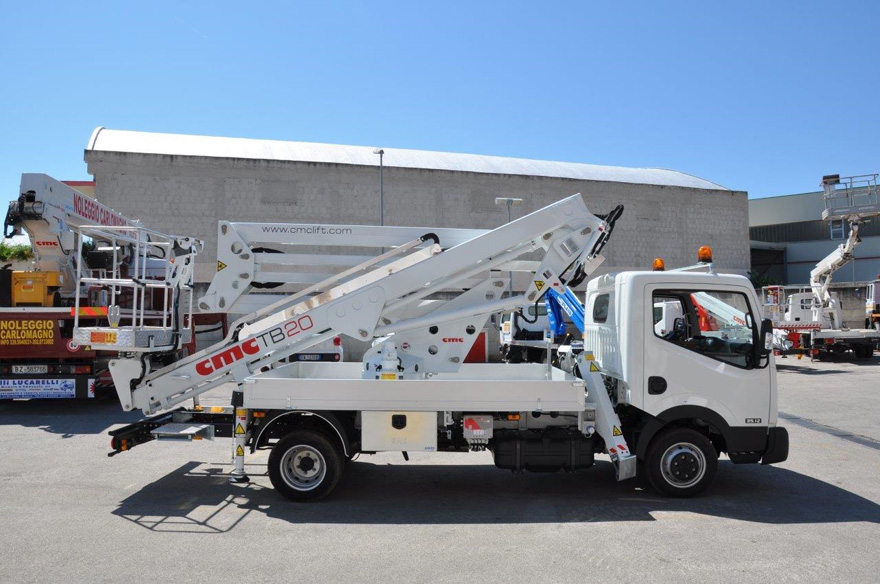

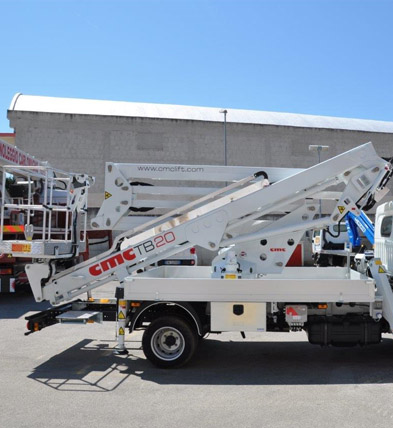

Operates completely hydraulically. This
articulated double pantograph plus one-extension telescopic boom, enables this
aerial work platform to reach 20m working height.
TBX 200 is equipped with A-shaped front outriggers and vertical outriggers
allow this unit to work in confined spaces with outriggers deployed within the
truck body. With the front stabilizer beam, outreach of 9m is possible and
allow up to 9m outreach (also on the cabin) without load restrictions on the
entire work envelope.
Precise hydraulic controls in basket, allow for smooth, safe and comfortable
lift operation.
