Model
|
CMC PLJ 250
|

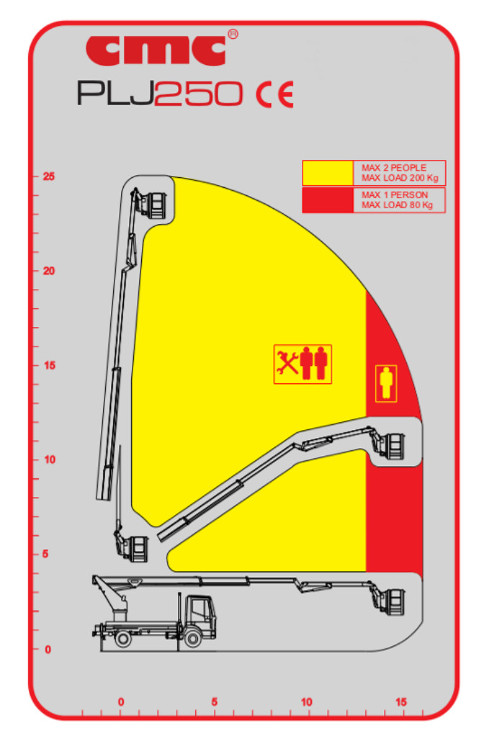

Max. working height
|
25 m
|
Max. lifting height
|
23 m
|
Max. working outreach
|
16 m
|
Basket size
|
2,2x0,8x1,1 m
|
Basket max. load
|
200 kg
|
Turret rotation
|
Continuous
|
Basket rotation
|
± 90°
|
Total weight
|
12 t
|
PLJ 250 combines compact size and high
performance in one neat package.
Built with heavier duty booms and structural components, allows fast operation
with excellent reach performance, as well as the possibility to reach out
16m with compact stabilization within the truck body.

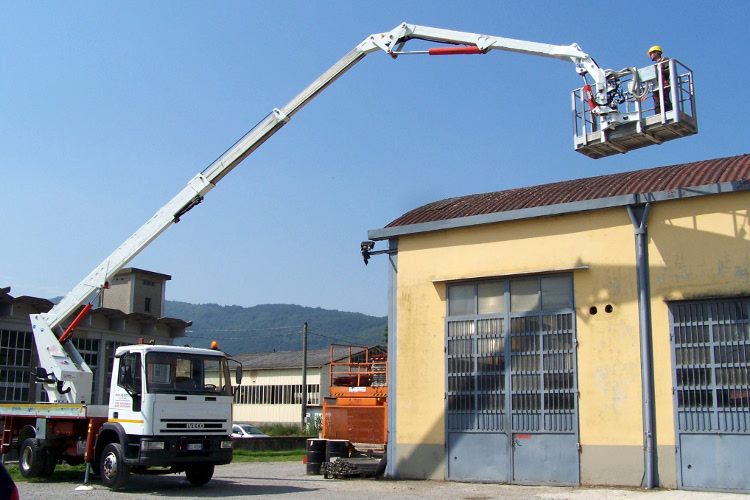

This platform mounted on 12t truck has 25m working height (with about 4m in
negative reach) thanks to a two boom telescopic extensions, plus fixed jib.
The large 2,2m wide basket is equipped with smooth Sauer Danfoss electro
hydraulic controls for a comfortable ride, and can easily carry one to two
operators with tools, up to a max. weight of 200kg.
PLJ 250 is equipped standard with vertical hydraulic outriggers and many nifty
accessories: Ground control station with seat mounted on side of rotation
turret, ergonomic controls with proportional hydraulic controls for smooth
operation without the jerkiness and uncomfortable ride; continuous rotation
turret; variable displacement hydraulic pump and hydraulic fluid cooling
radiator.
