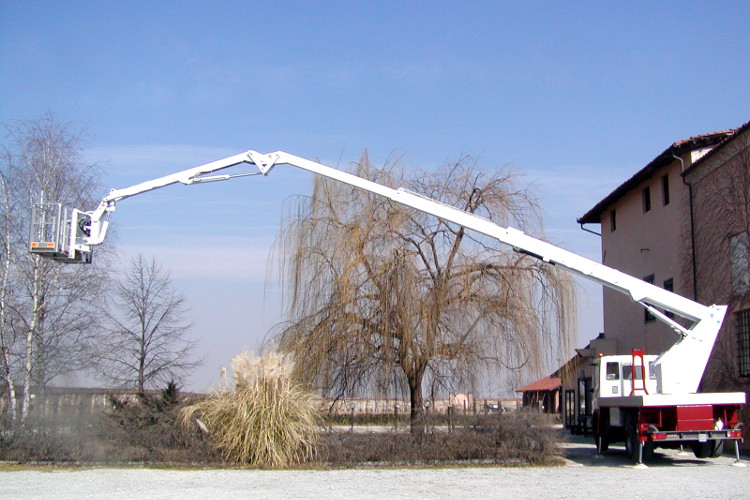

意大利CMC PLJ 290原装进口车载升降车

意大利PLJ 290进口升降车

产品型号：

CMC PLJ 290

品牌信息：

成都升降平台

基本信息：

意大利CMC PLJ 290原装进口车载升降车，升降机安装在汽车上的高空作业设备。工作高度：29.0m，最大延伸：22.0m，适用于高速公路路灯检修，线缆检修维护，相对无汽车底盘的升降机，移动速度较快。广泛应用于电力、市政、园林、工矿企业、通信等行业。

发布时间：

2016-02-19

在线咨询：

产品经理：

1800-800-0401

意大利CMC PLJ 290原装进口车载升降车

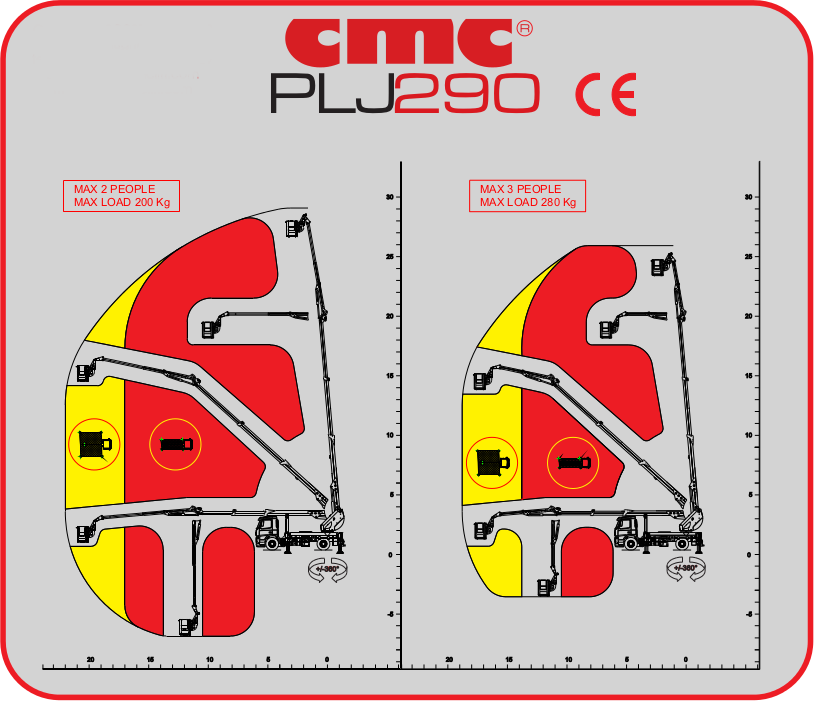

Model	CMC PLJ 290
Max. working height	29 m
Max. lifting height	27 m
Max. working outreach	22 m
Basket size	2,2x0,8x1,1 m 3x0,8x1,1 m
Basket max. load	280 kg
Turret rotation	Continuous
Basket rotation	± 90°
Total weight	18 t

Equipped with a 10m jib and compact 7,10m overall vehicle length would be enough to make this lift a winner in any fleet.
The double telescopic booms plus jib, allows the PLJ 290 up to 29m working height (about 7m in negative reach ability).
22m outreach is also possible with the front and rear stabilizers retracted within the truck body. Vertical outriggers with horizontally hydraulically telescopic beams, allows horizontal outreach on all sides without restrictions on the work area envelope.
PLJ 290 comes equipped standard with: basket is extensible to 3m; Hatz auxiliary engine; Danfoss electro hydraulic controls mounted on rotating turret and in basket; ergonomic proportional hydraulic controls for smooth operation without the jerkiness and uncomfortable ride, variable displacement hydraulic pump; hydraulic fluid cooling radiator.
